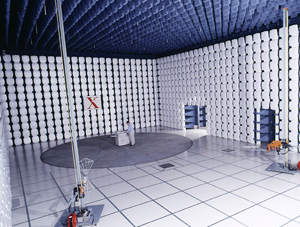

Безэховая камера ETS-Lindgren FACT 10

Radiated Emissions Testing
ETS-Lindgren’s FACT 10 chambers can be used to perform full compliance testing for ANSI C63.4 (FCC part 15 & 18), EN 50147-2, CISPR 11/EN55011, CISPR 16/EN55016, CISPR 22/ EN55022, Bellcore GR-1089, and SAE J551 (component and full vehicle) testing requirements. At 10 m test distance, ETS-Lindgren guarantees a Normalized Site Attenuation (NSA) deviation better than ± 4.0 dB from theoretical NSA within a cylindrical quiet zone of 3 m, 4 m, and 6 m diameters over the frequency range of 30 MHz to 1 GHz. The quiet zone at 3 m and 5 m test distance is a cylinder up to 2.0 meters in diameter, following the volumetric test procedure of ANSI C63.4. Anticipating tomorrow’s requirements, the Durasorb hybrid absorber guarantees NSA performance of better than ± 4 dB deviation from theoretical NSA from 30 MHz to 1 GHz and sVSWR performance of better than 6 dB from 1 GHz to 18 GHz, using the test method defined in ANSI C63.4/CISPR 16.

Radiated Immunity Testing
ETS-Lindgren’s FACT 10 chambers can also be used to perform full compliance testing for IEC 61000-4-3/EN61000-4-3, ENV 50140 and SAE J-1113 requirements. At FACT-10TM range lengths, field uniformity of 0, + 6 dB is achieved in the test aperture over the frequency range of frequency range of 80 MHz to 18 GHz. The test aperture is a vertical plane 1.5 m x 1.5 m at an elevation of 0.8 m to 2.3 m above the ground plane, following the field uniformity test procedure of IEC 61000-4-3. An optional absorber treatment package is available which permits radiated immunity testing at frequencies up to 18 GHz with 0, +/- 6 dB field uniformity, following the test procedure of IEC 61000-4-3. Additionally, DSH1250H can safely withstand continuous field intensity up to 200 V/m and intermittent field intensity up to 500 V/m. This safely exceeds the field intensity requirements of most commercial RI tests.

Specifications

Electrical Specifications
Frequency Minimum: 26 MHz
Frequency Maximum: 18 GHz
Absorber Type: EHP-18CL Absorber; FS-1500; FT-100; FT-100c; FT-2000
IEC 1000-4-3 Field Uniformity: 0+6 dB; 1.5 m x 1.5 m; 26 MHz to 18 GHz; 75% 16 Points

Physical Specifications
FACT 10-3.0 Plus
- Modular RF-shielded enclosure with nominal inside shield dimensions of 19.35m x 11.52m x 8.47m
Note: Height measured above the ground plane raised floor
-Estimated overall chamber dimensions of 19.91m x 12.19m x 9.65m

FACT 10-3.0 Premium
- Modular RF-shielded enclosure with nominal inside shield dimensions of 19.35m x 11.52m x 8.47m
Note: Height measured above the ground plane raised floor
- Estimated overall chamber dimensions of 19.91m x 12.19m x 9.65m

FACT 10-4.0 Standard
- Modular RF-shielded enclosure with nominal inside shield dimensions of 19.94m x 10.95m x 6.65m
- Estimated overall chamber dimensions of 20.50m x 11.61m x 7.85m

FACT 10-4.0 Plus
-Modular RF-shielded enclosure with nominal inside shield dimensions of 19.94m x 12.14m x 8.48m
- Estimated overall chamber dimensions of 20.50m x 12.80m x 9.68m

FACT 10-4.0 Premium
- Modular RF-shielded enclosure with nominal inside shield dimensions of 19.94m x 12.14m x 8.48m
- Estimated overall chamber dimensions of 20.50m x 12.80m x 9.68m

FACT 10-6.0 Plus
- Modular RF-shielded enclosure with nominal inside shield dimensions of 21.79m x 13.26m x 8.48m
- Estimated overall chamber dimensions of 22.35m x 13.92m x 9.68m

Other Specifications
• 3 m Quiet Zone: Design and fabricate RF-shielded enclosure, interior nominal shield-to-shield dimensions of 18.78 m L x 11.56 m W x 8.93 m H includes 45.72 cm raised floor.
• 4 m Quiet Zone: Design and fabricate RF-shielded enclosure, interior nominal shield-to-shield dimensions of 19.42 m L x 12.17 m W x 8.93 m H includes 45.72 cm raised floor.
• 6 m Quiet Zone: Design and fabricate RF-shielded enclosure, interior nominal shield-to-shield dimensions of 21.82 m L x 13.28 m W x 9.10 m H includes 60.96 raised floor.
• Two Access Hatches in Raised Floor
• Dielectric Vapor Barrier and Masonite Underlayment
• Model 2175 MiniMast™ Electrically Powered Air Polarization Boom Tower with 20 m Cable and Fiber Optic Feed-through
• One RF-shielded Penetration for Airline to MiniMast (Compressed Air is Responsibility of Customer)
• Two Door Maintenance Kits
• One Threaded Brass Ground Stud 1.27 cm Diameter x 12.7 cm Long
• One Single-leaf, Series 201, Recessed Contact Mechanism (RCM), Manually Operated, RF-Shielded Personnel Door, 0.91 m x 2.13 m Clear Opening
• FT-1500 on the Doors
• Raised, Reflective Ground Plane, 45.72 cm
• Model 2090 Dual Device Controller
• Four "N" Type Connectors
• Design and Fabricate RF-shielded Enclosure, Interior Nominal Shield-to-shield Dimensions of 18.81 m L x 11.56 m W x 6.97 m H, includes 45.72 cm Raised Floor
• Four Single Line, 100 Amp, 60 Hz, Power-line Filters (Wiring not included)
• Two 2 x 30 Amp, 60 Hz Power-line Filters for Turntable (Wiring not included)
• FS-1500 Hybrid Absorber for all Four Walls up to the 9th Row
• Light Reflective Covers for the FS-1500, Hybrid Absorber on the Chamber Walls
• Sixteen Pieces of EHP-18PCL Pyramidal Absorber on an Area of the Floor for Radiated Immunity Testing from 1 GHz up to 40 GHz
• FT-100 from the 9th Row to Ceiling for all Four Walls
• Installation of the Enclosure and Absorber
• One RFSD-F-100 Automatic, Sliding RF-shielded Equipment Door
• 3.18 mm Vinyl Floor Tile
• Four Waveguide Vents, 60.96 cm x 30.48 cm
• Field Uniformity Calibration per IEC 61000-4-3 from 26 MHz to 1 GHz (Optional Test from 1 GHz to 18 GHz)
• Seismic Structural Design Calculations and Certification
• One Connector Panel, 30.48 cm x 60.96 cm
• One Fiber Optic Penetration Kit
• One Design Review at Customer's Location
• 2081-3.03 Electrically Powered, 3 m Turntable with Cable and Fiber Optic Feed-through
• Normalized Site Attenuation Test per ANSI C63.4 from 30 MHz to 1 GHz (Optional Test from 1 GHz to 18 GHz)
• One 3.81 cm (1.5 in) Pipe Penetration with Flange Nuts and Cap
• Shield Test per MIL-STD-285, One Frequency Test at 1 GHz
• Twelve High-hat Light Fixtures with Integral Waveguide Air Vents (Electrical Distribution not included)
• Guaranteed Performance and a Five-year Limited Warranty; One-year Warranty on Doors, Filters and Moving Parts; Two-year Warranty on Optional ETS-Lindgren Equipment
