Безэховая экранированная камера FACT 5, рабочий диапазон частот от 26 МГц до 40 ГГц. Поверхность камеры покрыта ферритовыми панелями и радиопоглощающим материалом. Высота сканирования антенн до 4 метров. Используется при проведении тестирования эмиссии на дистанции 5 метров, а также проводить тесты на соответствие стандартам с расстоянием измерения 3 метра. Предназначена для тестов по стандартам: ANSIC63.4, CISPR16/EN55016, CISPR11/EN55011, EN50147-2, CISPR22/EN55022, SAE J551, Belcore №GR-1089, MIL-STD461E, SAEJ-1113, SAEJ551, IEC 61000-4-3 и EN61000-4-3, CISPR25.
Подробнее
Описание
Radiated Emissions Testing
ETS-Lindgren’s FACT 5 chambers are designed to provide customers with more standardized solutions for different quiet zone diameters and performance options. This will provide users more flexibility to choose which solution works best for their individual needs. The available quiet zone sizes are available up to 3 meters in diameter.

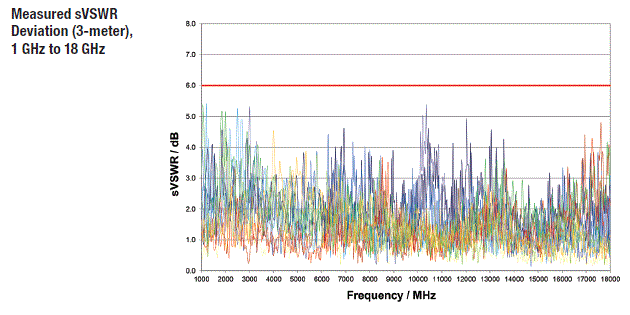

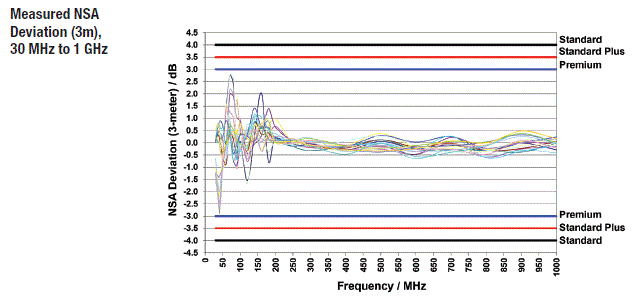

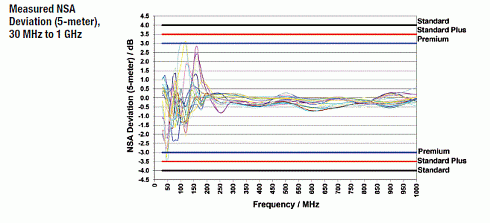

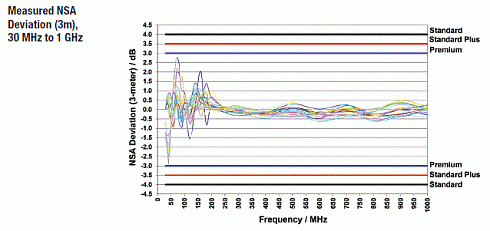

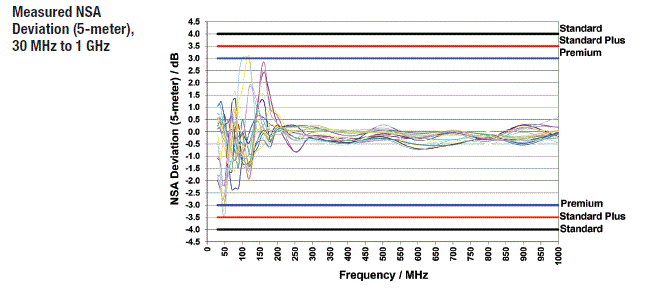

FACT 5 chambers can be used to perform full compliance testing for ANSI C63.4, FCC Parts 15 and 18, EN 50147-2, CISPR 11/EN 55011, CISPR 16/EN55016, CISPR 22/EN55022, CISPR 32/EN55032, VCCI V-3/2003.04, SAE J551 and SAE J1113. ETS-Lindgren guarantees that the performance of Normalized Site Attenuation (NSA) testing according to ANSI C63.4 with 5 meter test distance, is ± 4.0 dB for STANDARD chamber, ± 3.5 dB for STANDARD PLUS chamber and ± 3.0 dB for PREMIUM chamber over the frequency range of 30 MHz to 1 GHz. The guaranteed performance for Site VSWR (sVSWR) test per CISPR 16-1-4 (ANSI C63.4) for frequency range of 1 GHz to 18 GHz is < 6.0 dB, regardless which performance option is selected below 1 GHz.
Radiated Immunity Testing

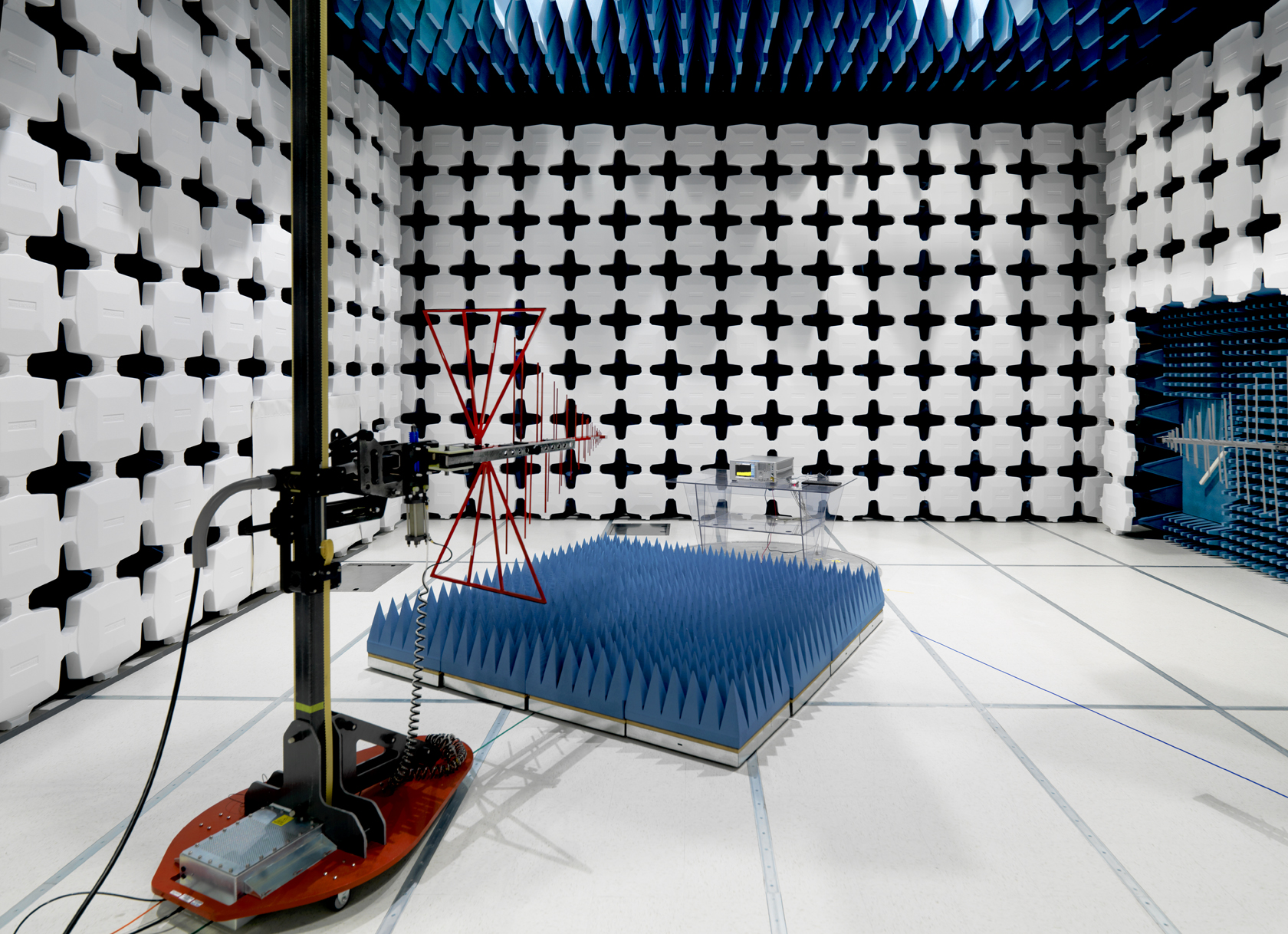

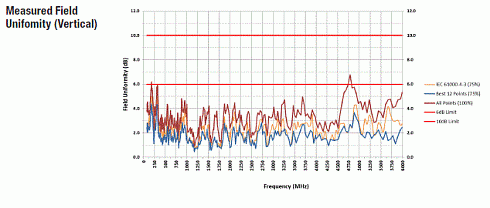

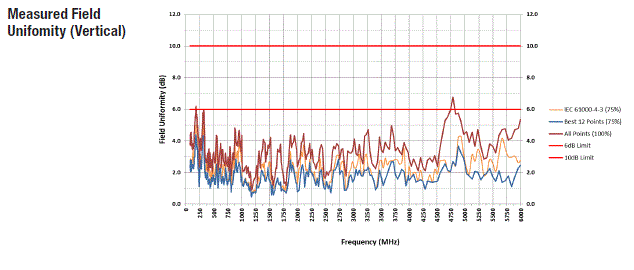

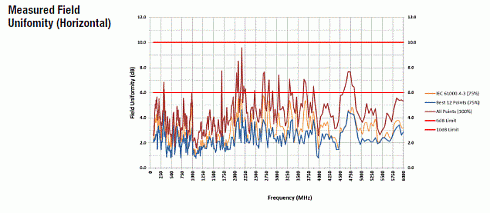

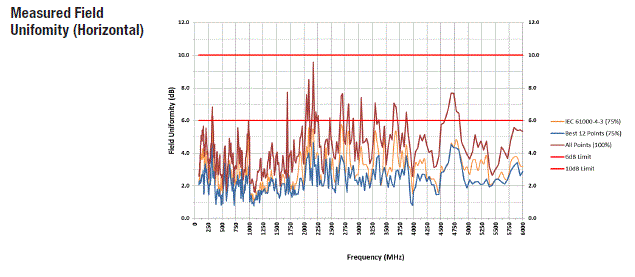

FACT 5 chambers can also be used to perform full compliance testing for IEC 61000-4-3/EN61000-4-3, SAE J-551 requirements. At 3 meter test distance lengths, Field Uniformity (FU) of 0 to 6 dB can be achieved over the frequency range of 26 MHz to 18 GHz. The test aperture for FU is a vertical plane of 1.5 m x 1.5 m at an elevation of 0.8 m to 2.3 m above the ground plane, following the field uniformity test procedure of IEC 61000-4-3. Additionally, used absorber material can safely withstand continuous field intensity of up to 200 V/m and intermittent field intensity of up to 500 V/m. This safely exceeds the field intensity requirements of commercial RI tests.
Key Features
• 26 MHz to 40 GHz Frequency Range
• Emissions and Immunities Measurements
• Full Compliance Testing for Radiated Emissions:
ANSI C63.4
FCC Parts 15 and 18
EN 50147-2
CISPR 11/EN55011
CISPR 16/EN55016
CISPR 22/EN55022
CISPR 32/EN55032
VCCI V-3/2003.04
SAE J551
SAE J1113 (Requires Chamber Modification to Accommodate Full Vehicle)
• Full Compliance Testing for Radiated Immunity:
IEC 61000-4-3/EN61000-4-3
SAE J551
SAE J1113
• Eligible for FCC 3m Class B Facility Filing
• Available NSA Performance Options (May Require Chamber Modifications):
Standard ± 4.0 dB
Standard Plus ± 3.5 dB
Premium ± 3.0 dB
• Available as a Turnkey Package:
Chamber
Tower
Turntable
Antennas
Instrumentation
Software
Specifications
Electrical Specifications
Frequency Minimum: 26 MHz
Frequency Maximum: 40 GHz
ANSI C63.4 Normalized Site Attenuation: 30 MHz to 40 GHz
Other Specifications
• Design and Fabricate RF-shielded Enclosure
• Installation of the Enclosure and Absorber
• One Single-leaf, Manually Operated, RF-shielded Personnel Door
• Raised, Reflective Ground Plane
• Access Hatches in Raised Floor, Nominally 30 cm x 30 cm
• Waveguide Vents, Nominally 30 cm x 30 cm
• 50/60 Hz Power-line Filters for EUT, Lights, Antenna Tower and Turntable
• Connector Panels, Nominally 15 cm x 60 cm Clear Opening
• Pipe Penetration
• Fiber Optic ST-type Feed-through Kits for Antenna Tower and Turntable
• RF-shielded Penetration for Airline to Antenna Tower (Compressed Air is Responsibility of Customer)
• Corner-mounted Light Fixtures with Floodlights (Electrical Distribution not Included in All Markets)
• Shielding Effectiveness Test at 1 GHz with the Test Methods of MIL-STD-285/IEEE-299
• FerroSorb™ Hybrid Absorber
• Light Reflective Finish on the Walls and Ceiling
• FerroSorb Hybrid Floor Absorber on Sixteen (16) Movable Carts for Immunity Testing
• EHP™ Microwave Floor Absorber for an Area of the Floor for sVSWR Testing
• ETS-Lindgren Electrically Powered Turntable
• ETS-Lindgren Dual Device Controller
• ETS-Lindgren Boresight Antenna Tower; Electrically Powered and Air Polarization
• Warranty as per ETS-Lindgren’s Standard Warranty for Anechoic Chambers and Associated Equipment
ETS-Lindgren’s FACT 5 chambers are designed to provide customers with more standardized solutions for different quiet zone diameters and performance options. This will provide users more flexibility to choose which solution works best for their individual needs. The available quiet zone sizes are available up to 3 meters in diameter.
FACT 5 chambers can be used to perform full compliance testing for ANSI C63.4, FCC Parts 15 and 18, EN 50147-2, CISPR 11/EN 55011, CISPR 16/EN55016, CISPR 22/EN55022, CISPR 32/EN55032, VCCI V-3/2003.04, SAE J551 and SAE J1113. ETS-Lindgren guarantees that the performance of Normalized Site Attenuation (NSA) testing according to ANSI C63.4 with 5 meter test distance, is ± 4.0 dB for STANDARD chamber, ± 3.5 dB for STANDARD PLUS chamber and ± 3.0 dB for PREMIUM chamber over the frequency range of 30 MHz to 1 GHz. The guaranteed performance for Site VSWR (sVSWR) test per CISPR 16-1-4 (ANSI C63.4) for frequency range of 1 GHz to 18 GHz is < 6.0 dB, regardless which performance option is selected below 1 GHz.
Radiated Immunity Testing
FACT 5 chambers can also be used to perform full compliance testing for IEC 61000-4-3/EN61000-4-3, SAE J-551 requirements. At 3 meter test distance lengths, Field Uniformity (FU) of 0 to 6 dB can be achieved over the frequency range of 26 MHz to 18 GHz. The test aperture for FU is a vertical plane of 1.5 m x 1.5 m at an elevation of 0.8 m to 2.3 m above the ground plane, following the field uniformity test procedure of IEC 61000-4-3. Additionally, used absorber material can safely withstand continuous field intensity of up to 200 V/m and intermittent field intensity of up to 500 V/m. This safely exceeds the field intensity requirements of commercial RI tests.
Key Features
• 26 MHz to 40 GHz Frequency Range
• Emissions and Immunities Measurements
• Full Compliance Testing for Radiated Emissions:
ANSI C63.4
FCC Parts 15 and 18
EN 50147-2
CISPR 11/EN55011
CISPR 16/EN55016
CISPR 22/EN55022
CISPR 32/EN55032
VCCI V-3/2003.04
SAE J551
SAE J1113 (Requires Chamber Modification to Accommodate Full Vehicle)
• Full Compliance Testing for Radiated Immunity:
IEC 61000-4-3/EN61000-4-3
SAE J551
SAE J1113
• Eligible for FCC 3m Class B Facility Filing
• Available NSA Performance Options (May Require Chamber Modifications):
Standard ± 4.0 dB
Standard Plus ± 3.5 dB
Premium ± 3.0 dB
• Available as a Turnkey Package:
Chamber
Tower
Turntable
Antennas
Instrumentation
Software
Specifications
Electrical Specifications
Frequency Minimum: 26 MHz
Frequency Maximum: 40 GHz
ANSI C63.4 Normalized Site Attenuation: 30 MHz to 40 GHz
Other Specifications
• Design and Fabricate RF-shielded Enclosure
• Installation of the Enclosure and Absorber
• One Single-leaf, Manually Operated, RF-shielded Personnel Door
• Raised, Reflective Ground Plane
• Access Hatches in Raised Floor, Nominally 30 cm x 30 cm
• Waveguide Vents, Nominally 30 cm x 30 cm
• 50/60 Hz Power-line Filters for EUT, Lights, Antenna Tower and Turntable
• Connector Panels, Nominally 15 cm x 60 cm Clear Opening
• Pipe Penetration
• Fiber Optic ST-type Feed-through Kits for Antenna Tower and Turntable
• RF-shielded Penetration for Airline to Antenna Tower (Compressed Air is Responsibility of Customer)
• Corner-mounted Light Fixtures with Floodlights (Electrical Distribution not Included in All Markets)
• Shielding Effectiveness Test at 1 GHz with the Test Methods of MIL-STD-285/IEEE-299
• FerroSorb™ Hybrid Absorber
• Light Reflective Finish on the Walls and Ceiling
• FerroSorb Hybrid Floor Absorber on Sixteen (16) Movable Carts for Immunity Testing
• EHP™ Microwave Floor Absorber for an Area of the Floor for sVSWR Testing
• ETS-Lindgren Electrically Powered Turntable
• ETS-Lindgren Dual Device Controller
• ETS-Lindgren Boresight Antenna Tower; Electrically Powered and Air Polarization
• Warranty as per ETS-Lindgren’s Standard Warranty for Anechoic Chambers and Associated Equipment
