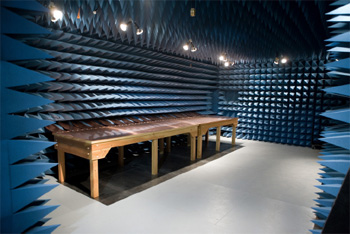

Камера MIL-STD 461 предназначена для проведений испытаний на соответствие с военными стандартами Mil-Std 461E, Mil-Std 461F и Mil-Std-461G. Конструкция камеры выполнена из экранирующих панелей серии 81. Внутренняя поверхность камеры покрыта высокопроизводительным радиопоглощающим материалом EMC-24PCL выдерживающим мощность до 775 Вт/м2.
Подробнее
Описание
Key Features
• 10kHz – 40GHz RE102 and RE103 frequency range

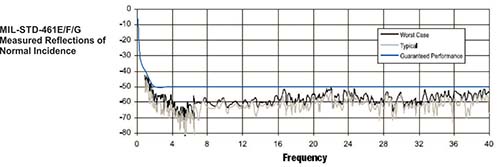

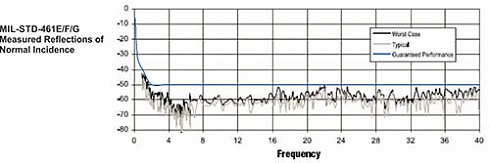

• Minimum Chamber Performance:
6dB reflectivity Loss from 80MHz to 250MHz
10dB Reflectivity Loss Above 250MHz
• Conducted Emissions
• Conducted Susceptibility
• Radiated Susceptibility
• RF Specifications:
RE: 30 Hz – 40 GHz
RS: 30 Hz – 40 GHz
Electrical Specifications
Frequency Minimum: 10 kHz
Frequency Maximum: 40 GHz
Physical Specifications
Internal Working Area Length: 4.267 m
Internal Working Area Width: 4.267 m
Internal Working Area Height: 2.438 m
Shield Room Inner Length: 5.486 m
Shield Room Inner Width: 5.486 m
Shield Room Inner Height: 3.048 m
Overall Structure Length: 5.791 m
Overall Structure Width: 5.791 m
Overall Structure Height: 3.352 m
Other Specifications
• Design and Fabricate Series 81 RF Shielded Enclosure with Interior Shield-to-shield Dimensions 5.49 m L x 5.49 m W x 3.05 m H
• One (1) Series 201 Single-leaf, RCM, Manually Operated, RF Shielded Door 1.21 m W x 2.13 m H, Door will be Strategically Located in an Area without Absorber, Including Limit Switch to Accommodate Optional Immunity Interlock Switch
• One (1) Test Bench, 3.51 m L x 0.91 m W x 0.91 m H with Grounding Attachments to Chamber End Wall per MIL-STD-461E/F/G
• ETS-Lindgren EMC-24PCL Pyramidal 24 in Absorber on the Chamber End Walls and Partial Areas of the Ceiling and Side Walls
• Two UL-listed 2 x 30 Amp, 60 Hz power-line filters; One for Lights, One for Power to EUT (Wiring and Electrical Distribution not included)
• One Door Maintenance Kit
• Two (2) Waveguide Vents, 0.31 m x 0.61 m
• 0.15 mm (6 mil) Polyethylene Vapor Barrier
• 3.0 mm Thick Dielectric Floor Underlay with 3.0 mm Vinyl Floor Tile
• Guaranteed Performance and a Five-year Limited Warranty; One-year Warranty on Doors, Filters and Moving Parts; Two-year Warranty on Optional ETS-Lindgren's Equipment
• One (1) Threaded Brass Ground Stud, 1.3 cm Diameter x 12.7 cm Long
• Four (4) Incandescent Corner-mounted Light Fixtures with Incandescent Floodlights (Electrical Distribution not Included)
• Two (2) Connector Panels, 15.2 cm x 61 cm
• Shield Test per MIL-STD-285, One Frequency Test at 1 GHz
• 10kHz – 40GHz RE102 and RE103 frequency range
• Minimum Chamber Performance:
6dB reflectivity Loss from 80MHz to 250MHz
10dB Reflectivity Loss Above 250MHz
• Conducted Emissions
• Conducted Susceptibility
• Radiated Susceptibility
• RF Specifications:
RE: 30 Hz – 40 GHz
RS: 30 Hz – 40 GHz
Electrical Specifications
Frequency Minimum: 10 kHz
Frequency Maximum: 40 GHz
Physical Specifications
Internal Working Area Length: 4.267 m
Internal Working Area Width: 4.267 m
Internal Working Area Height: 2.438 m
Shield Room Inner Length: 5.486 m
Shield Room Inner Width: 5.486 m
Shield Room Inner Height: 3.048 m
Overall Structure Length: 5.791 m
Overall Structure Width: 5.791 m
Overall Structure Height: 3.352 m
Other Specifications
• Design and Fabricate Series 81 RF Shielded Enclosure with Interior Shield-to-shield Dimensions 5.49 m L x 5.49 m W x 3.05 m H
• One (1) Series 201 Single-leaf, RCM, Manually Operated, RF Shielded Door 1.21 m W x 2.13 m H, Door will be Strategically Located in an Area without Absorber, Including Limit Switch to Accommodate Optional Immunity Interlock Switch
• One (1) Test Bench, 3.51 m L x 0.91 m W x 0.91 m H with Grounding Attachments to Chamber End Wall per MIL-STD-461E/F/G
• ETS-Lindgren EMC-24PCL Pyramidal 24 in Absorber on the Chamber End Walls and Partial Areas of the Ceiling and Side Walls
• Two UL-listed 2 x 30 Amp, 60 Hz power-line filters; One for Lights, One for Power to EUT (Wiring and Electrical Distribution not included)
• One Door Maintenance Kit
• Two (2) Waveguide Vents, 0.31 m x 0.61 m
• 0.15 mm (6 mil) Polyethylene Vapor Barrier
• 3.0 mm Thick Dielectric Floor Underlay with 3.0 mm Vinyl Floor Tile
• Guaranteed Performance and a Five-year Limited Warranty; One-year Warranty on Doors, Filters and Moving Parts; Two-year Warranty on Optional ETS-Lindgren's Equipment
• One (1) Threaded Brass Ground Stud, 1.3 cm Diameter x 12.7 cm Long
• Four (4) Incandescent Corner-mounted Light Fixtures with Incandescent Floodlights (Electrical Distribution not Included)
• Two (2) Connector Panels, 15.2 cm x 61 cm
• Shield Test per MIL-STD-285, One Frequency Test at 1 GHz
