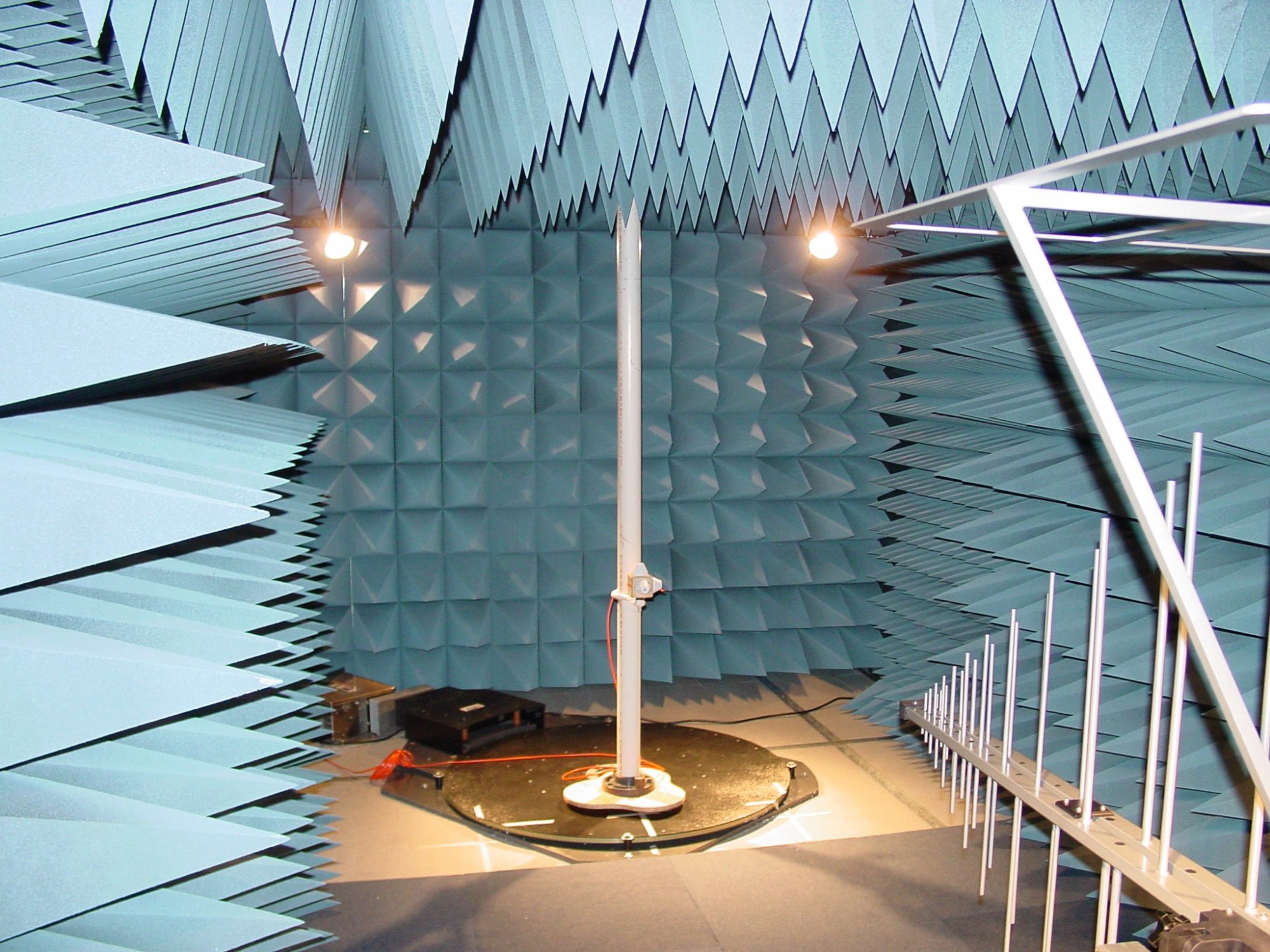

Полубезэховая камера SpaceSaver PC, рабочий диапазон частот 80 МГц – 40 ГГц (помехоустойчивость) и 30 МГц – 40 ГГц (эмиссия). Эффективна для проведения измерений на излучение и устойчивость согласно стандартам IEC61000-4-3, ANSI-C63.4/CISPR16-1-4.
Подробнее
Описание
Electrical Specifications
Frequency Minimum: 80 MHz
Frequency Maximum: 40 GHz
Physical Specifications
Scan Height: 1 m to 1.5 m
Overall Structure Dim (H): 2.6 m
Overall Structure Dim (L): 6.3 m
Overall Structure Dim (W): 3.3 m
Internal Working Area (L): 6.1 m
Internal Working Area (W): 3.1 m
Internal Working Area (H): 2.4 m
Quiet Zone for Emission Testing (Diameter x H): 1.0 m x 0.5 m
Field Uniformity: 0 to 6 dB; 1.0 m x 1.0 m
Other Specifications
Two Connector Panels, 15 cm x 61 cm Clear Opening
Four Corner-mounted Light Fixtures with Floodlights (Electrical Distribution not included)
4 x 2 x 30 Amp, Power-Line Filters For Lights And EUT (Wiring Not Included)
One single-leaf, Series 201, Recessed Contact Mechanism (RCM), Manually Operated, RF-shielded Door, 0.91 m x 2.13 m Clear Opening
Two Waveguide Vents, 30.48 cm x 30.48 cm in the Ceiling
Shield Test Per IEEE-299/MIL-STD 285
One 3.81 cm Pipe Penetration with flange nuts and Cap
4 x Corner-Mounted Light Fixtures With Floodlights (Electrical Distribution Not Included)
Two "N" type Connectors
Frequency Minimum: 80 MHz
Frequency Maximum: 40 GHz
Physical Specifications
Scan Height: 1 m to 1.5 m
Overall Structure Dim (H): 2.6 m
Overall Structure Dim (L): 6.3 m
Overall Structure Dim (W): 3.3 m
Internal Working Area (L): 6.1 m
Internal Working Area (W): 3.1 m
Internal Working Area (H): 2.4 m
Quiet Zone for Emission Testing (Diameter x H): 1.0 m x 0.5 m
Field Uniformity: 0 to 6 dB; 1.0 m x 1.0 m
Other Specifications
Two Connector Panels, 15 cm x 61 cm Clear Opening
Four Corner-mounted Light Fixtures with Floodlights (Electrical Distribution not included)
4 x 2 x 30 Amp, Power-Line Filters For Lights And EUT (Wiring Not Included)
One single-leaf, Series 201, Recessed Contact Mechanism (RCM), Manually Operated, RF-shielded Door, 0.91 m x 2.13 m Clear Opening
Two Waveguide Vents, 30.48 cm x 30.48 cm in the Ceiling
Shield Test Per IEEE-299/MIL-STD 285
One 3.81 cm Pipe Penetration with flange nuts and Cap
4 x Corner-Mounted Light Fixtures With Floodlights (Electrical Distribution Not Included)
Two "N" type Connectors
