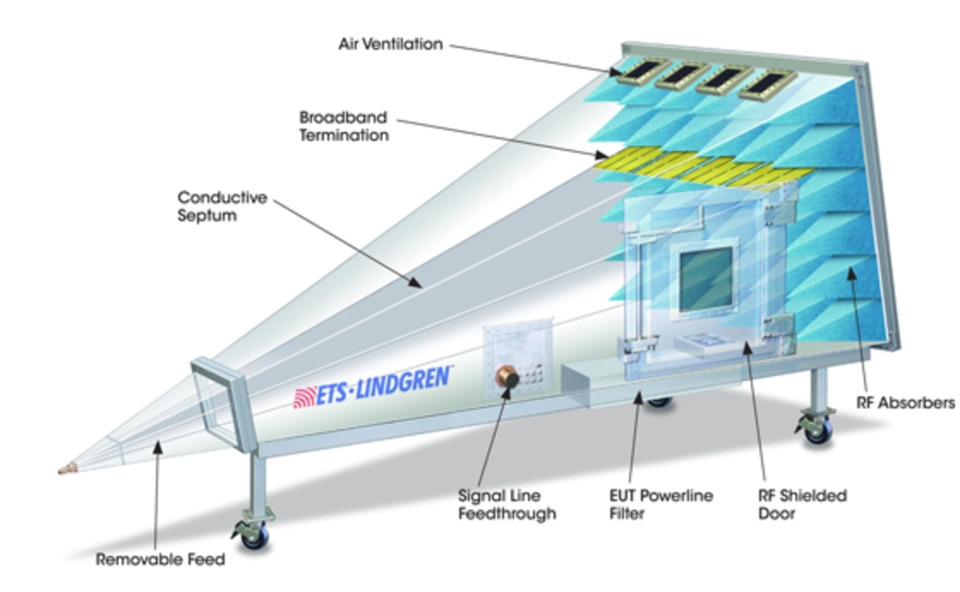

Испытательная камера GTEM 5407 (Gigahertz Transverse Electro-Magnetic) обеспечивает оптимальные условия для измерения помехоэмиссии или помехоустойчивости оборудования средних и больших габаритов. Точные измерения проходят значительно быстрее чем в любой другой камере, в том числе безэховой камере.
Подробнее
Описание
Electrical Specifications
Feed Connector Type: cw 7/16 DIN to N Adapter

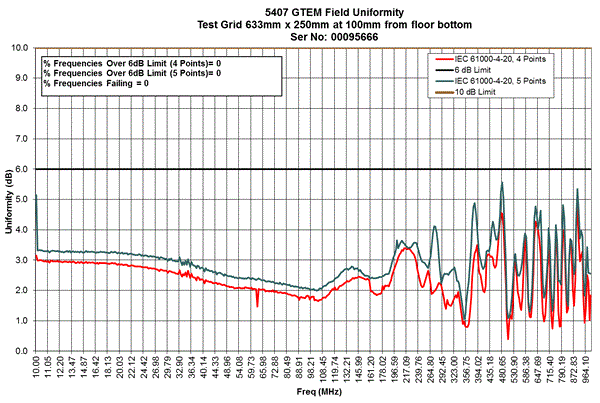

Field Uniformity: f £ 1 GHz, 0 -6dB
Frequency: 9 kHz to 5 GHz (RE)1; DC - 20 GHz (RI)2
Input Impedance 50 Ω

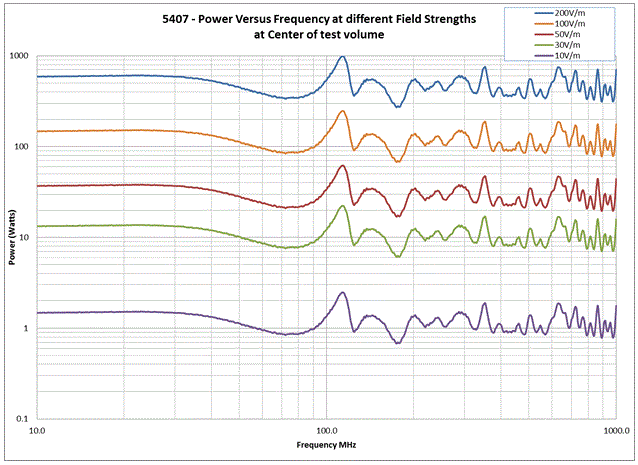

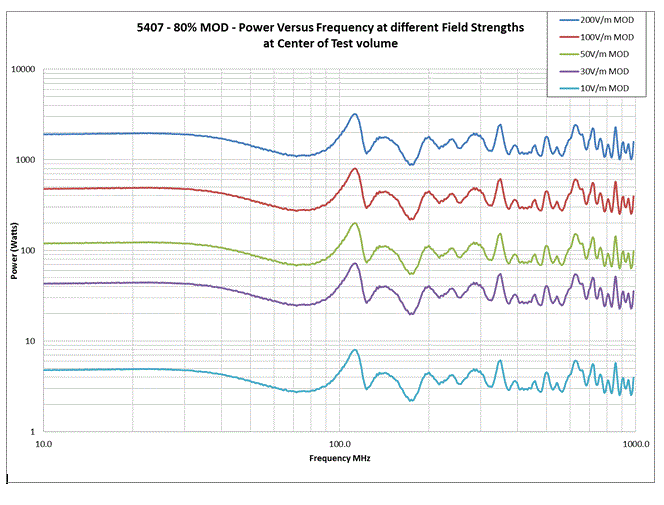

Maximum CW Input3 200/500W
Shielding Effectiveness 10 kHz to 1 GHz From Internal E-Fields 80 dB min
VSWR Maximum: All Other Frequencies £ 1.50:1; Characteristic Frequencies £ 1.75:1
VSWR Typical All Other Frequencies 1.30:1; Characteristic Freq4 1.75:1
1 Measurement Range (Where Correlation to OATS is Established):
3 Measurement - 3 Input GTEM-OATS Correlation Algorithm, 30 MHz to 5 GHz
9 Measurement - 9 Input GTEM-OATS Correlation Algorithm, 9 kHz to 5 GHz
2Low Input VSWR to f< 20 GHz Available
3500W with Optional Blower
4Characteristic frequency: The frequency at which cross-over between the two terminations (the resistor load boards and the RF absorber) occurs.
Physical Specifications
Door Dimension Primary (H): 747 mm (29.41 in)
Door Dimension Primary (W): 686 mm (27.01 in)
Door Dimension Secondary (H): 385 mm (15.16 in)
Door Dimension Secondary (W): 460 mm (18.11 in)
Highest Accuracy Transverse Test Surface in Center of Cell (H)5: 250 mm (9.84 in)
Highest Accuracy Transverse Test Surface in Center of Cell (W)5: 350.0 mm (13.78 in)
Maximum Recommended Transverse Test Surface in Center of Cell (H)6: 500.0 mm (19.69 in)
Maximum Recommended Transverse Test Surface in Center of Cell (W)6: 560 mm (22.05 in)
Maximum Septum Height7: 897 mm (35.32 in) Septum Height At Door center : 700mm (27.55 in)
Outer Cell w/Base Dimension(H)8: 2.1 m (6.89 ft)
Outer Cell w/Base Dimension(L): 4.0 m (13.12 ft)
Outer Cell w/Base Dimension(W): 2.2 m (7.22 ft) Approximate Cell Weight: 500.0 kg (1,102.30 lb)
5From quasi-static E-Field with H=1/3 Septum Height and W=1/3 Septum Width
6From quasi-static E-Field with H=2/3 Septum Height and W=2/3 Septum Width
7Measurement Taken at Rear of Test Volume
8Contact you ETS-Lindgren Representative for Dimensions without Base
Other Specifications
Two AC Receptacles
Absorber Material
Three N-type Connectors
One Fiber Optic Penetration
Individually Characterized with Results of TDR and VSWR Tests
Manual Emissions Correlation Software Available Upon Request
Ships Disassembled (Customer will need to provide manpower and specific tools for installation. Working supervisor for installation is provided; outside North America, call factory.)
7/16" DIN to Type "N" Adapter
Primary Door 68.6 cm x 74.7 cm (27 in x 29.1 in) Clear Opening
Mobile Base with Locking Casters
One 20 AMP, 2 Line Filter
Manual
Feed Connector Type: cw 7/16 DIN to N Adapter
Field Uniformity: f £ 1 GHz, 0 -6dB
Frequency: 9 kHz to 5 GHz (RE)1; DC - 20 GHz (RI)2
Input Impedance 50 Ω

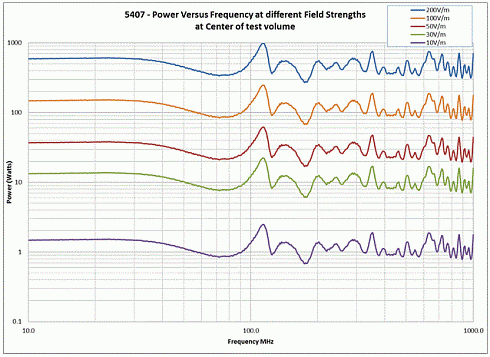

Maximum CW Input3 200/500W
Shielding Effectiveness 10 kHz to 1 GHz From Internal E-Fields 80 dB min
VSWR Maximum: All Other Frequencies £ 1.50:1; Characteristic Frequencies £ 1.75:1
VSWR Typical All Other Frequencies 1.30:1; Characteristic Freq4 1.75:1
1 Measurement Range (Where Correlation to OATS is Established):
3 Measurement - 3 Input GTEM-OATS Correlation Algorithm, 30 MHz to 5 GHz
9 Measurement - 9 Input GTEM-OATS Correlation Algorithm, 9 kHz to 5 GHz
2Low Input VSWR to f< 20 GHz Available
3500W with Optional Blower
4Characteristic frequency: The frequency at which cross-over between the two terminations (the resistor load boards and the RF absorber) occurs.
Physical Specifications
Door Dimension Primary (H): 747 mm (29.41 in)
Door Dimension Primary (W): 686 mm (27.01 in)
Door Dimension Secondary (H): 385 mm (15.16 in)
Door Dimension Secondary (W): 460 mm (18.11 in)
Highest Accuracy Transverse Test Surface in Center of Cell (H)5: 250 mm (9.84 in)
Highest Accuracy Transverse Test Surface in Center of Cell (W)5: 350.0 mm (13.78 in)
Maximum Recommended Transverse Test Surface in Center of Cell (H)6: 500.0 mm (19.69 in)
Maximum Recommended Transverse Test Surface in Center of Cell (W)6: 560 mm (22.05 in)
Maximum Septum Height7: 897 mm (35.32 in) Septum Height At Door center : 700mm (27.55 in)
Outer Cell w/Base Dimension(H)8: 2.1 m (6.89 ft)
Outer Cell w/Base Dimension(L): 4.0 m (13.12 ft)
Outer Cell w/Base Dimension(W): 2.2 m (7.22 ft) Approximate Cell Weight: 500.0 kg (1,102.30 lb)
5From quasi-static E-Field with H=1/3 Septum Height and W=1/3 Septum Width
6From quasi-static E-Field with H=2/3 Septum Height and W=2/3 Septum Width
7Measurement Taken at Rear of Test Volume
8Contact you ETS-Lindgren Representative for Dimensions without Base
Other Specifications
Two AC Receptacles
Absorber Material
Three N-type Connectors
One Fiber Optic Penetration
Individually Characterized with Results of TDR and VSWR Tests
Manual Emissions Correlation Software Available Upon Request
Ships Disassembled (Customer will need to provide manpower and specific tools for installation. Working supervisor for installation is provided; outside North America, call factory.)
7/16" DIN to Type "N" Adapter
Primary Door 68.6 cm x 74.7 cm (27 in x 29.1 in) Clear Opening
Mobile Base with Locking Casters
One 20 AMP, 2 Line Filter
Manual
