Модули РЧ переключателей EMSwitch (7001-00X), ETS-Lindgren

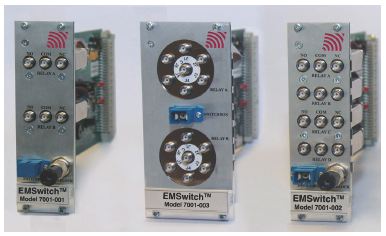

Модули РЧ переключателей EMSwitch (7001-00X). Работают с многофункциональной системой EMCenter. Оптимальны для измерений излучения и помехоустойчивости, тестирования беспроводного оборудования, для автоматизации измерений с применением специализированного ПО TILE, MQuest и других.

Подробнее

Описание
Документы

Описание

Specifications

Interlock - First Switch on Each Card can be Used as a True Interlock Switch
Supply Voltage (Volts) - Through EMCenter
Power Consumption (Maximum Watts) - 30 W
Temperature Range - 0° C to +40° C
Relative Humidity - 10 to 90%
Remote Control External Relays - Fiber Optic Link

Model	Number of Relays	Frequency Band	RF Switching Capacity	Exterior Dimension (H x W x D)	RF Connectors
7001-001 (Plug-in Card)	2x SPDT	18 GHz	DC to 3 GHz: 240 W 3 to 8 GHz: 150 W 8 to 12.4 GHz: 120 W 12.4 to 18 GHz: 10 0W	One Slot	SMA Type
7001-002 (Plug-in Card)	4x SPDT	18 GHz	DC to 3 GHz: 240 W 3 to 8 GHz: 150 W 8 to 12.4 GHz: 120 W 12.4 to 18 GHz: 10 0W	One Slot	SMA Type
7001-003 (Plug-in Card)	2x SP6T	18 GHz	DC to 3 GHz: 240 W 3 to 8 GHz: 150 W 8 to 12.4 GHz: 120 W 12.4 to 18 GHz: 10 0W	Two Slot	SMA Type
7001-005 (Plug-in Card)	1x SP6T	18 GHz	DC to 3 GHz: 240 W 3 to 8 GHz: 150 W 8 to 12.4 GHz: 120 W 12.4 to 18 GHz: 10 0W	One Slot	SMA Type
7001-011 (Plug-in Card)	2x SPDT	40 GHz	DC to 6 GHz: 80 W 6 to 12.4 GHz: 60 W 12.4 to 18 GHz: 50 W 18 to 26.5 GHz: 20 W 26.5 to 40 GHz: 10 W	One Slot	K Type
7001-012 (Plug-in Card)	4x SPDT	40 GHz	DC to 6 GHz: 80 W 6 to 12.4 GHz: 60 W 12.4 to 18 GHz: 50 W 18 to 26.5 GHz: 20 W 26.5 to 40 GHz: 10 W	One Slot	K Type
7001-013 (Plug-in Card)	2x SP6T	40 GHz	DC to 6 GHz: 40 W 6 to 12.4 GHz: 30 W 12.4 to 18 GHz: 25 W 18 to 26.5 GHz: 15 W 26.5 to 40 GHz: 5 W	Two Slot	K Type
7001-015 (Plug-in Card)	1x SP6T	40 GHz	DC to 6 GHz: 40 W 6 to 12.4 GHz: 30 W 12.4 to 18 GHz: 25 W 18 to 26.5 GHz: 15 W 26.5 to 40 GHz: 5 W	Two Slot	K Type
7001-021 (Plug-in Card)	SPDT	12 GHz	DC to 1 GHz: 700 W 1 to 2 GHz: 500 W 2 to 3 GHz: 400 W 3 to 8 GHz: 250 W 8 to 12.4 GHz: 200W	One Slot	N Type

Документы

EMSwitch User Manual

788.8 Кб
