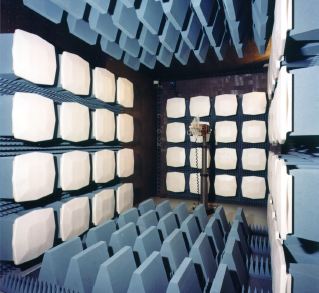

Описание
Electrical Specifications
Frequency Minimum: 26 MHz
Frequency Maximum: 40 GHz
Physical Specifications
Scan Height: Fixed
Overall Structure Dim (H): 3.5 m
Overall Structure Dim (L): 7.8 m
Overall Structure Dim (W): 3.8 m
Internal Working Area (L): 7.6 m
Internal Working Area (W): 3.7 m
Internal Working Area (H): 3.4 m
Quiet Zone for Emission Testing (Diameter x H): 1.0 m x 0.5 m
Field Uniformity: 0 to 6 dB; 1.5 m x 1.5 m
Other Specifications
Two Connector Panels, 15 cm x 61 cm Clear Opening
Four Corner-mounted Light Fixtures with Floodlights (Electrical Distribution not Included)
4 x 2 x 30 Amp, Power-Line Filters For Lights And EUT (Wiring Not Included)
One Single-leaf, Series 201, Recessed Contact Mechanism (RCM), Manually Operated, RF-shielded Door, 0.91 m x 2.13 m Clear Opening
Two Waveguide Vents, 30.48 cm x 30.48 cm in the Ceiling
7-TR Tripod
Shield Test Per IEEE-299/MIL-STD 285
One 3.81 cm Pipe Penetration with Flange Nuts and Cap
Two "N" Type Connectors
Frequency Minimum: 26 MHz
Frequency Maximum: 40 GHz
Physical Specifications
Scan Height: Fixed
Overall Structure Dim (H): 3.5 m
Overall Structure Dim (L): 7.8 m
Overall Structure Dim (W): 3.8 m
Internal Working Area (L): 7.6 m
Internal Working Area (W): 3.7 m
Internal Working Area (H): 3.4 m
Quiet Zone for Emission Testing (Diameter x H): 1.0 m x 0.5 m
Field Uniformity: 0 to 6 dB; 1.5 m x 1.5 m
Other Specifications
Two Connector Panels, 15 cm x 61 cm Clear Opening
Four Corner-mounted Light Fixtures with Floodlights (Electrical Distribution not Included)
4 x 2 x 30 Amp, Power-Line Filters For Lights And EUT (Wiring Not Included)
One Single-leaf, Series 201, Recessed Contact Mechanism (RCM), Manually Operated, RF-shielded Door, 0.91 m x 2.13 m Clear Opening
Two Waveguide Vents, 30.48 cm x 30.48 cm in the Ceiling
7-TR Tripod
Shield Test Per IEEE-299/MIL-STD 285
One 3.81 cm Pipe Penetration with Flange Nuts and Cap
Two "N" Type Connectors
