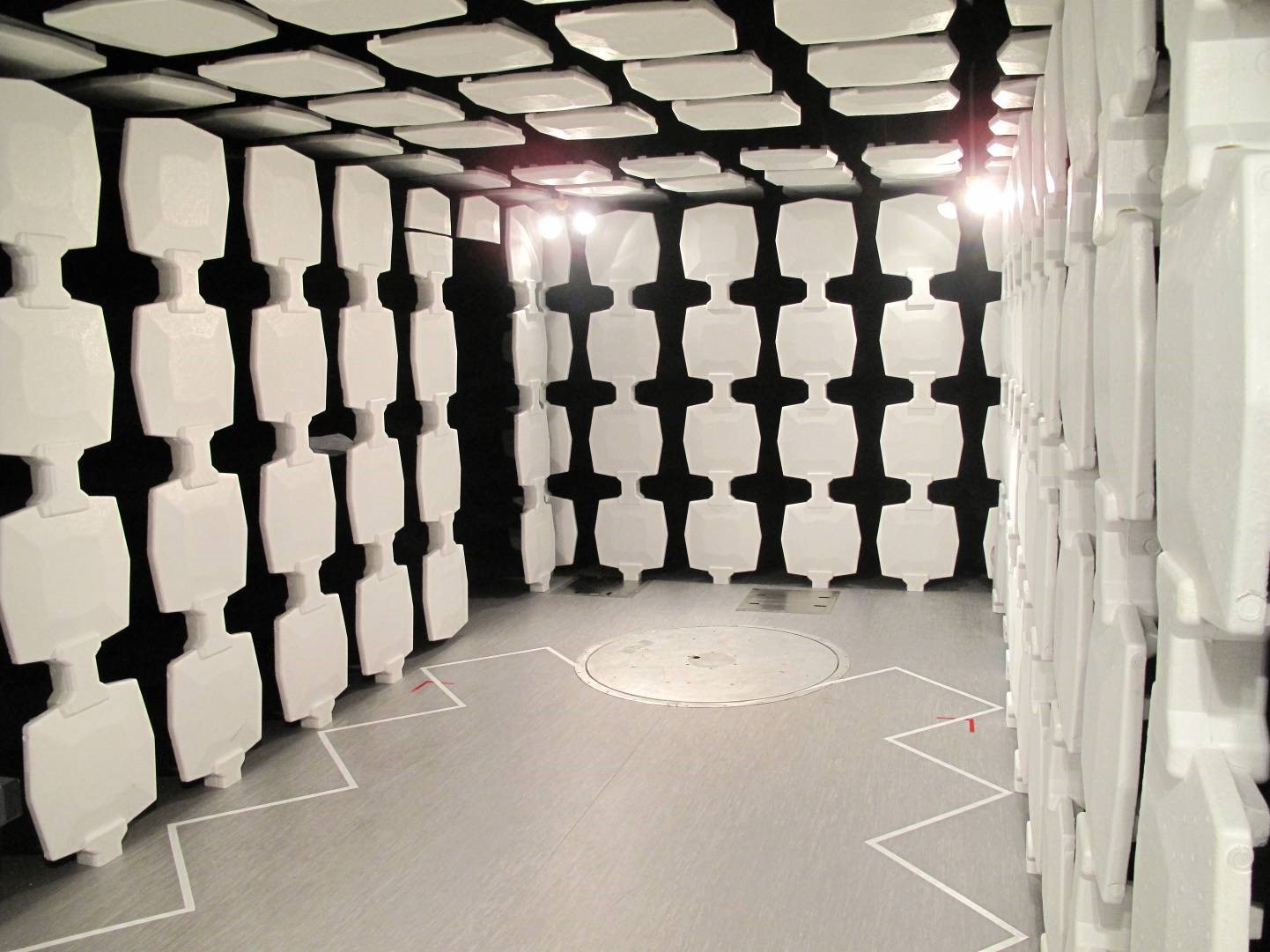

Полубезэховая камера SpaceSaver 26H, рабочий диапазон частот 26 МГц - 40 ГГц. Камера для испытаний оборудования на электромагнитную совместимость по многим стандартам. Эффективна для измерений иммунитета по стандартам EN 61000-4-3, IEC 61000-4-3, а также для проведения предварительного сканирования (с ограничением высоты) по стандарту ANSI C63.4. Камера SpaceSaver позволяет достигать высокую однородность поля и отличную корреляцию для местного затухания при облучении во время предварительного сканирования.
Подробнее
Описание
Electrical Specifications
Frequency Minimum: 26 MHz
Frequency Maximum: 40 GHz
Physical Specifications
Scan Height: 1 m to 2 m
Overall Structure Dim (H): 3.2 m
Overall Structure Dim (L): 7.8 m
Overall Structure Dim (W): 3.8 m
Internal Working Area (L): 7.6 m
Internal Working Area (W): 3.1 m
Internal Working Area (H): 3.1 m
Quiet Zone for Emission Testing (Diameter x H): 1.2 m x 2.0 m
Field Uniformity: 0 to 6 dB; 1.5 m x 1.5 m
Other Specifications
Two Connector Panels, 15 cm x 61 cm Clear Opening
Four corner-mounted Light Fixtures with LED lights
4 x 2 x 30 Amp, Power-Line Filters For Lights And EUT (Wiring Not Included)
Manual 4’ x 7’ RF-shielded single-leaf door w/ limit switch
Two Waveguide Vents, 30.48 cm x 30.48 cm in the Ceiling
Shield Test Per IEEE-299/MIL-STD 285
One 3.81 cm Pipe Penetration with Flange Nuts and Cap
7-TR Tripod
Two "N" Type Connectors
One 4 cm Pipe Penetration With Flange Nuts And Cap
Frequency Minimum: 26 MHz
Frequency Maximum: 40 GHz
Physical Specifications
Scan Height: 1 m to 2 m
Overall Structure Dim (H): 3.2 m
Overall Structure Dim (L): 7.8 m
Overall Structure Dim (W): 3.8 m
Internal Working Area (L): 7.6 m
Internal Working Area (W): 3.1 m
Internal Working Area (H): 3.1 m
Quiet Zone for Emission Testing (Diameter x H): 1.2 m x 2.0 m
Field Uniformity: 0 to 6 dB; 1.5 m x 1.5 m
Other Specifications
Two Connector Panels, 15 cm x 61 cm Clear Opening
Four corner-mounted Light Fixtures with LED lights
4 x 2 x 30 Amp, Power-Line Filters For Lights And EUT (Wiring Not Included)
Manual 4’ x 7’ RF-shielded single-leaf door w/ limit switch
Two Waveguide Vents, 30.48 cm x 30.48 cm in the Ceiling
Shield Test Per IEEE-299/MIL-STD 285
One 3.81 cm Pipe Penetration with Flange Nuts and Cap
7-TR Tripod
Two "N" Type Connectors
One 4 cm Pipe Penetration With Flange Nuts And Cap
